Item # : 4C12D-05
$1,959.00
 $2,446.00

Product Description

The versatile™ 4C mailboxes are USPS Approved and meet or exceed STD-4C requirements for new construction and major renovations. They are also ideal for private delivery applications. With numerous pre-configured 4C modules available, be sure to refer to USPS Approval guidance in product details below when selecting pre-configured 4C mailboxes for your project.


Product Details:

• Superior strength, corrosion resistance, and exceptional durability for indoor AND outdoor installations
• USPS Approved to STD-4C regulations required for all new construction and major renovation projects
• 4C standard mailboxes are fully-recessed for in-wall mounting. Surface-mount collar and kiosk kits are available at an additional charge.
• USPS regulations require a minimum of one parcel locker for every ten tenant compartments and one outgoing mail slot per unit
• Factory installed integral trim surrounds mailbox and unique MUCK (multi-unit connector kit) included for easy installation of multiple 4C mailboxes

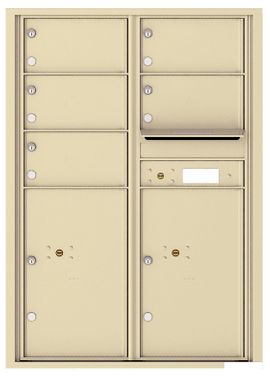

• (5) 6-1/2"H tenant compartments, (2) 20-1/2"H parcel lockers, 6-1/2"H standard outgoing mail compartment

USPS Approval:
Yes

Finish or Material:
Heavy gauge aluminum construction

Loading and Mounting:
Front-loading 4C mailbox includes a carrier access door prepared for a USPS arrow lock (installed by local postal officials) for delivery/service to mailbox

Tenant Doors:
Tenant doors include heavy duty, dustproof cam locks each with 3 keys

Parcel Lockers:
Includes Parcel locker door(s) - a means of USPS package delivery. Dual, captive locking system allows USPS to deliver a package to the locker leaving the key in the tenant's mailbox. Package is retrieved by the tenant and key is retained securely in the lock.

Outgoing Mail:
Outgoing mail compartment with slot, anti-fish comb for security, and protective hood is located above USPS access door for convenient outgoing mail collection

Door Identification:
Attractive silver placards with black numbers are included for door identification

Technical Information:

Total Tenant Doors: 5
Tenant Door Size(s): 3"Hx12"Wx15"D

Total Parcel Lockers: 2
Parcel Door Size(s): 20-1/2"Hx12"Wx15"D

Product Cutsheets:
• 4C12D-05CS.pdf

Height:
Unit height is 44-1/4". See cut sheet for Rough opening details.

Width:
Double column unit width is 31-9/16". Single column unit width is 17-1/2". See cut sheet for Rough opening details.

Depth:
Minimum wall depth of 17" required for Fully-recessed 4C mailboxes



Powder Coat Color Reference

Sandstone (7501C)
- Pebble Finish -

Black (Black 6C)
- Pebble Finish -

Dark Bronze (Black 7C)
- Pebble Finish -

Silver Speck (877C)
- Pebble Finish -

Antique Bronze (8622C)
- Pebble Finish -

Postal Grey (413C)*
- Flat Finish -

Gold Speck (7-5C)
- Pebble Finish -

White (PMS White)
- Pebble Finish -

• Pantone color numbers shown in parentheses for reference purposes only. Printed colors shown here may vary slightly due to printing process.

• Pebble Finish refers to a noticeable texture in the paint which may also affect how the color looks; textures are organic and not identical.

*Flat Finish
(Postal Grey is a flat finish. All other powder coated finishes are now available only in durable pebble texture.)
