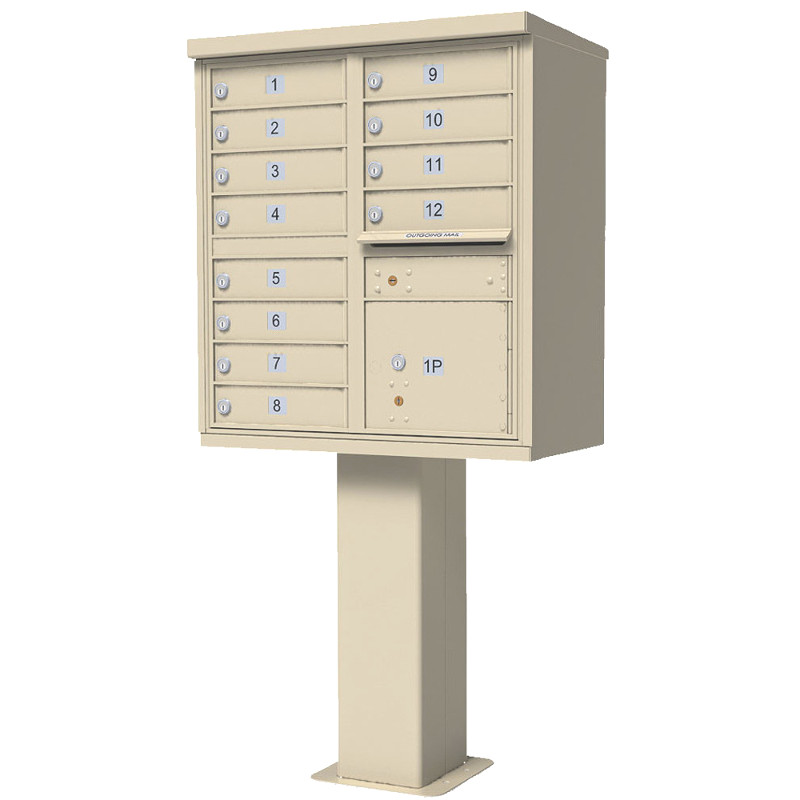

HSCBU, Type II, 12 door with pedestal

HSCBU, Type II, 12 door with pedestal
HSCBU, Type II, 12 door with pedestal
enlargeclick to enlarge


Item # : HSCBU-12
Out of Stock

Product Description

Clearance Sale! Limited time offer while supplies last. Limited quantity available. Call for availability on orders with multiple units.

High Security Cluster Box Unit (HSCBU) mailbox has 12 doors and 1 parcel locker with included pedestal

The HSCBU was designed specifically to combat mail theft and reduce break-in damage in higher crime areas and is offered exclusively by Florence Manufacturing. An extension of the USPS Approved vital CBU series with the benefit of additional tamper resistant standard features.

• Pedestal included! High security pedestal with tamper-resistant, USPS installed bolts included with all 1565 CBU mailboxes.
• Superior strength, corrosion resistance, and exceptional durability for indoor AND outdoor installations.
• USPS Approved HIGH SECURITY HSCBU for centralized mail delivery - ideal for areas of high theft or any other residential and commercial application where that extra security is required.

Finish or Material:
Heavy duty aluminum and stainless steel construction with an attractive powder coat finish.

Loading and Mounting:
Front loading, pedestal mounted CBU mailbox includes a carrier access door prepared for a USPS arrow lock (installed by local postal officials) for delivery/service to mailbox.

Tenant Doors:
Tenant doors include heavy duty, high security, dustproof cam locks each with 3 keys.

Parcel Lockers:
Includes Parcel locker door(s) - a means of USPS package delivery. Dual, captive locking system allows USPS to deliver a package to the locker leaving the key in the tenant's mailbox. Package is retrieved by the tenant and key is retained securely in the lock until the USPS uses it to deliver another package for a resident.

Outgoing Mail:
Outgoing mail compartment with slot, anti-fish comb for security, and protective hood is located above USPS access door for convenient outgoing mail collection.

Door Identification:
Attractive silver placards with black numbers 1 thru 12, 1P, are included for door identification.

Technical Information:
Total Tenant Doors: 12
Tenant Door Height: 3"

Total Parcel Lockers: 1
Total Small Parcel Lockers: 1

Installed unit (on pedestal) height is 62"

Installed unit width is 30-1/2"

Installed unit depth is 17-7/8"
